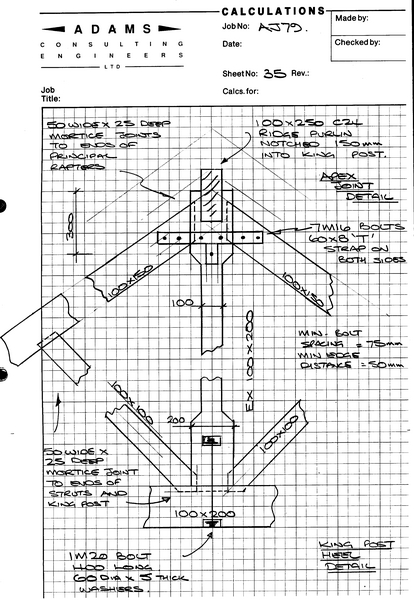

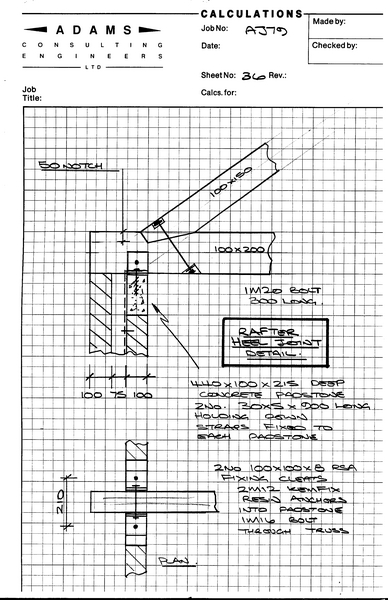

The diagrams below are from the engineers, and show the design of the new oak roff truss. There are many pages of caculatiosn, which I don't understand, and I have not shown.
